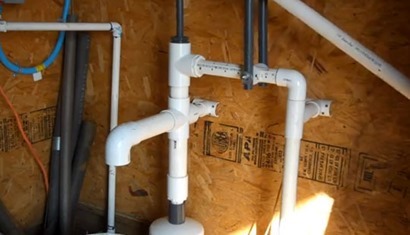

Build a Simple PVC Water Well Hand Pump

PVC-Water-Well-Hand-Pump

Parts List for Hand Pump for Water Well Using PVC Pipe and Fittings

This goes with the Schematic Diagram

A – 1 inch PVC Schedule 40 pipe

B – 3/4 inch PVC Schedule 40 pipe

C – 1 1/4 inch PVC Schedule 40 pipe

D – 1 inch cap

E – 1 1/4 X 3/4 Sch. 80 adapter

F – 1 1/4 inch coupling, collar, Sch. 40

G – 3/4 inch, slip glue joint to external thread, Sch. 40

H – 3/4 inch, slip glue joint to internal thread, Sch. 40

I – 3/4 X 3/8 bushing adapter, Sch. 80

J – 3/4 inch diameter Stainless Steel ball, type 316, grade 100

K – 5/32 or 3/16 diameter PVC welding rod glued in as a ball retainer.

Read more here.
